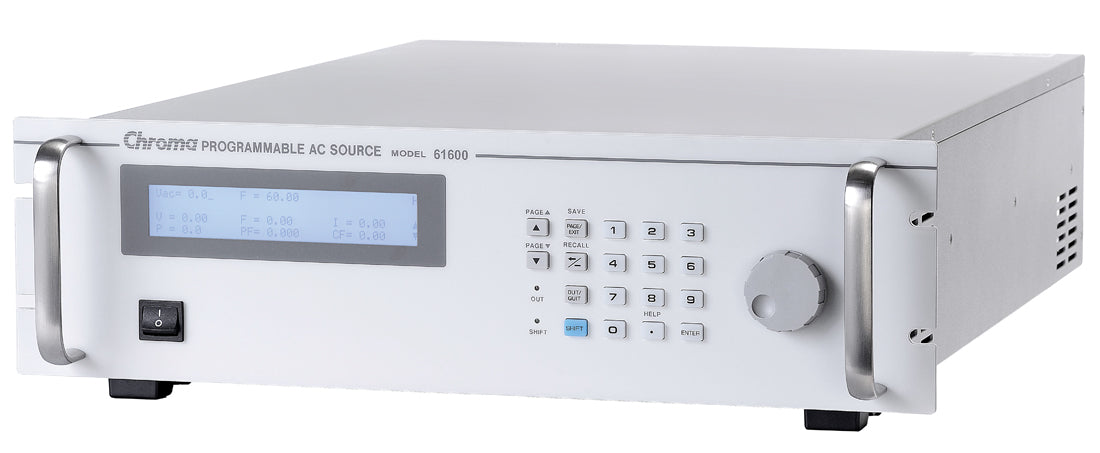

61601 Programmable AC Power Source 500VA

Model 61601

The Chroma 61601 500VA Programmable AC Power Source delivers single phase AC power at an unbeatable value. This versatile source offers an output voltage range of 0 to 300VAC and frequencies from 15 to 1000Hz, making it ideal for commercial, avionics, and military applications. From bench-top testing to mass production, the reliable 61601 is the right choice for consistent, precise power.

Comprehensive Measurements

This power source features a built-in 16-bit precision measurement circuit and firmware utilities that enable the measurement of RMS voltage, RMS current, true power, power factor, peak repetitive current, inrush current, current crest factor, apparent power (VA), and reactive power (VAR). These comprehensive measurements make the Chroma Programmable AC Power Source 61600 Series not only a power source but also a highly capable power meter.

Slew Rate of Voltage & Frequency

Using DSP technology for programming voltage waveforms, you can change the voltage or frequency in a single step, or set the slew rate to achieve a gradual increase or decrease in voltage and frequency. This can help test the power input range (for example, 90V-264V/47Hz-63Hz) of products easily.

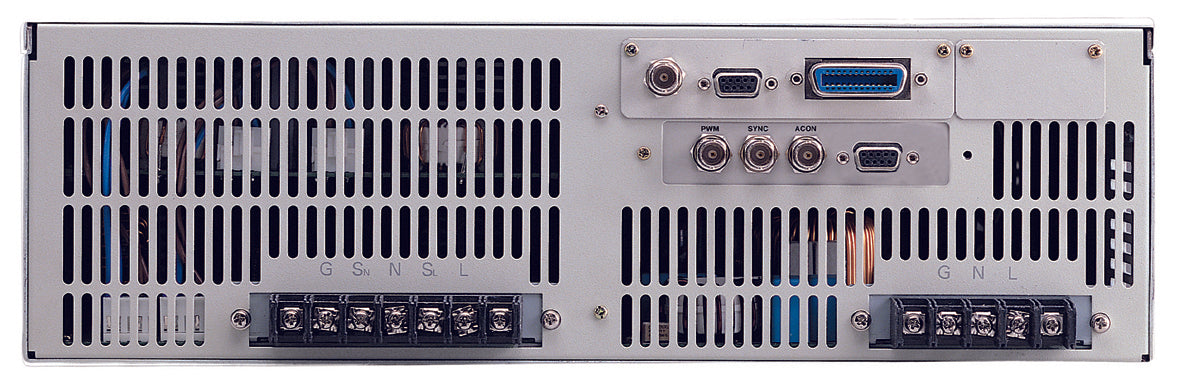

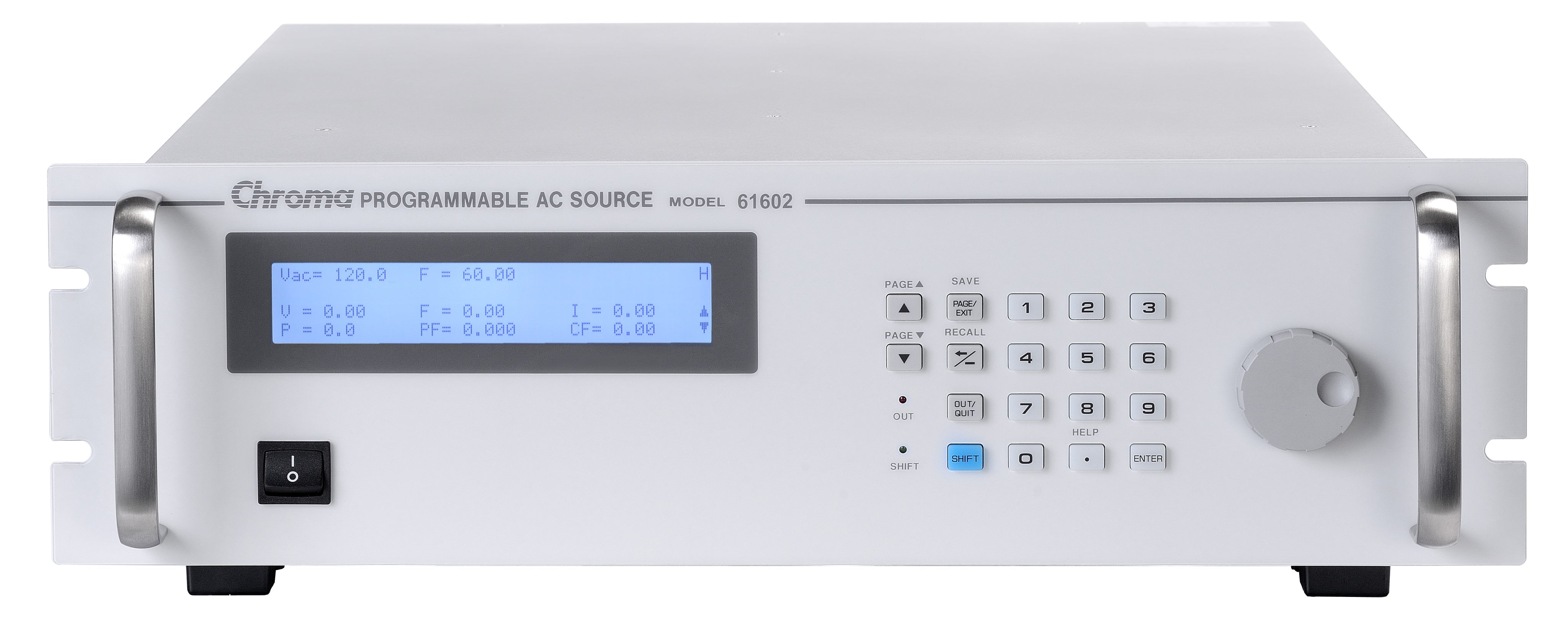

The 61600 series offers versatile front panel operations with an LCD display and rotary knob. Users can also remotely control the 61600 series AC source via GPIB, RS-232, or APG (Analog Programming) interface.
