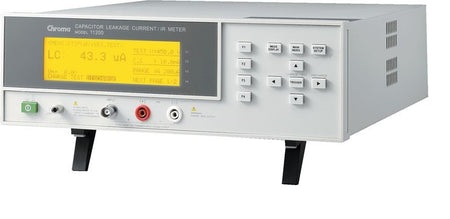

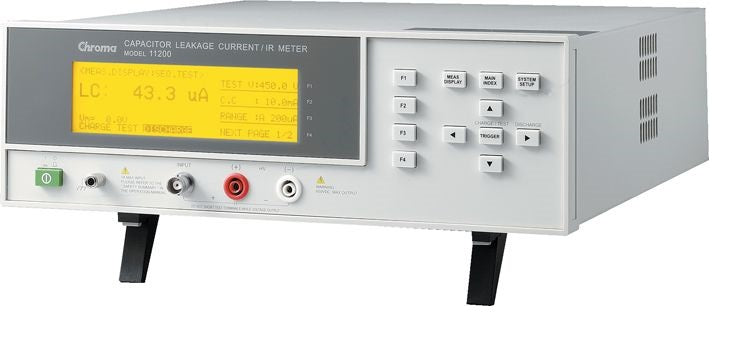

11200-650 Capacitor Leakage Current / IR Meter 650V
Subscribe to our LinkedIn Newsletter
Couldn't load pickup availability
Model 11200-650
The Chroma 11200 Capacitor Leakage Current / IR Meter provides DC 1-650 V, 0.5mA~500mA (150mA for V > 100V) or DC1~800v, 0.5mA~500mA (50mA for V > 100V) DC power source with voltage meter and nano-ampere meter. It is mainly used for electrolytic capacitor leakage current testing and aluminum-foil withstand voltage testing (EIAJ RC-2364A). The 11200 can also be used for active voltage checking or leakage current testing of absorber, Zener diode, and Neon lamp etc. With standard RS232 interface, optional GPIB & Handler interfaces, high speed, and stable measurement capabilities enable the Chroma 11200 can be used for both component evaluation on the production line and for fundamental leakage current or IR testing for bench-top applications.
