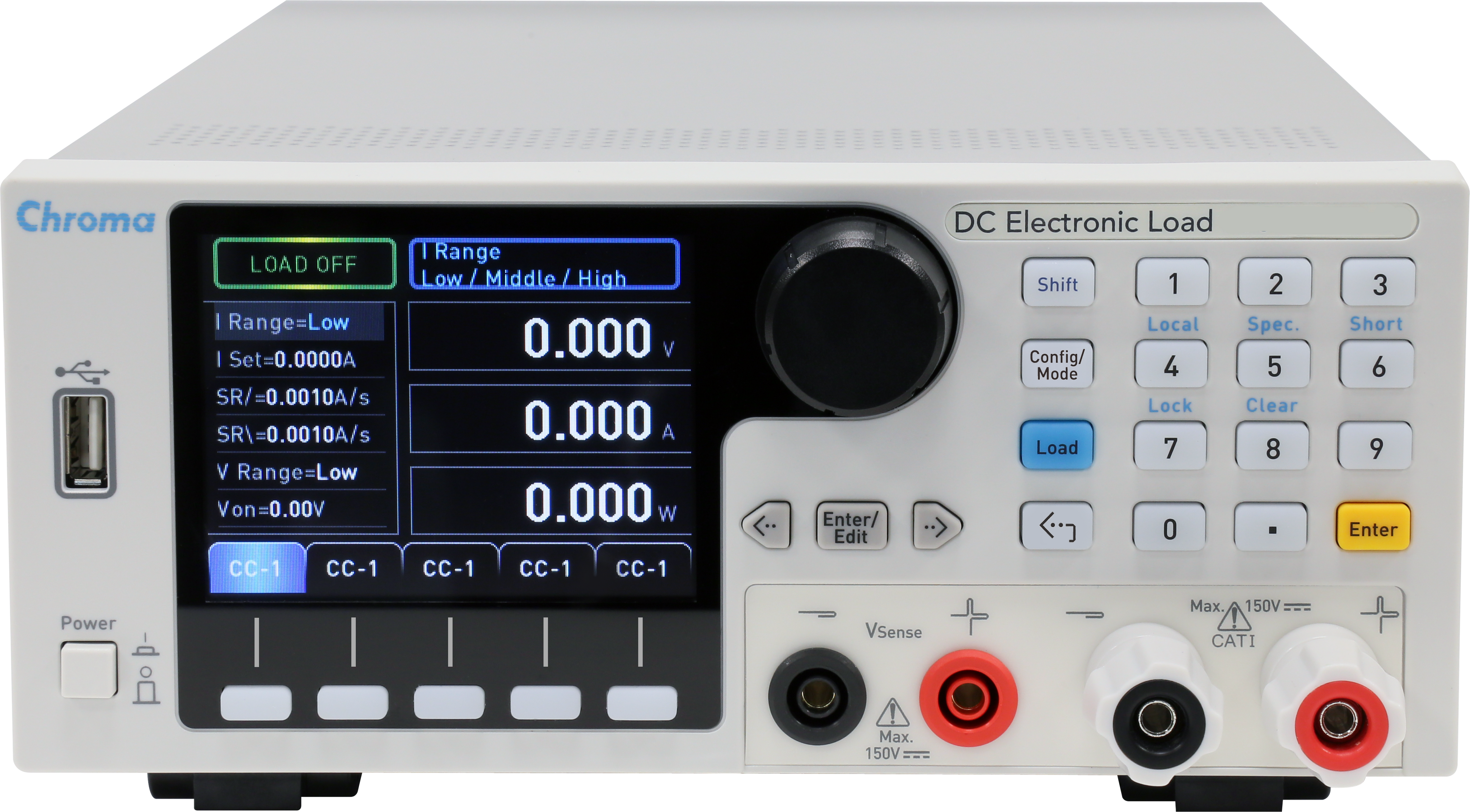

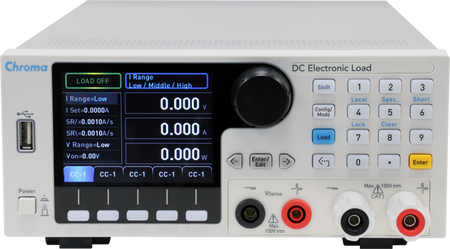

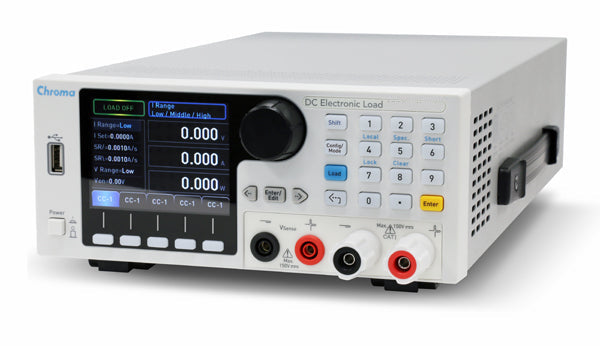

63004-150-60 Benchtop DC Electronic Load 150V/60A/350W
Subscribe to our LinkedIn Newsletter
Couldn't load pickup availability
Model 63004-150-60
The 63000 series programmable DC electronic loads are the go-to choice for reliable and precise testing of various power devices such as switching power supplies, A/D power supplies, power electronic components, adapters, 3C batteries, and chargers. With a maximum 350W rated power, this Benchtop DC Electronic Load is perfect for testing a wide range of lower power devices. Includes:
- CC, CR, CV & CP operation modes
- User-defined waveforms (UDW)
- CZ mode for turn-on capacitive load simulation
- Real time power supply load transient response simulation
