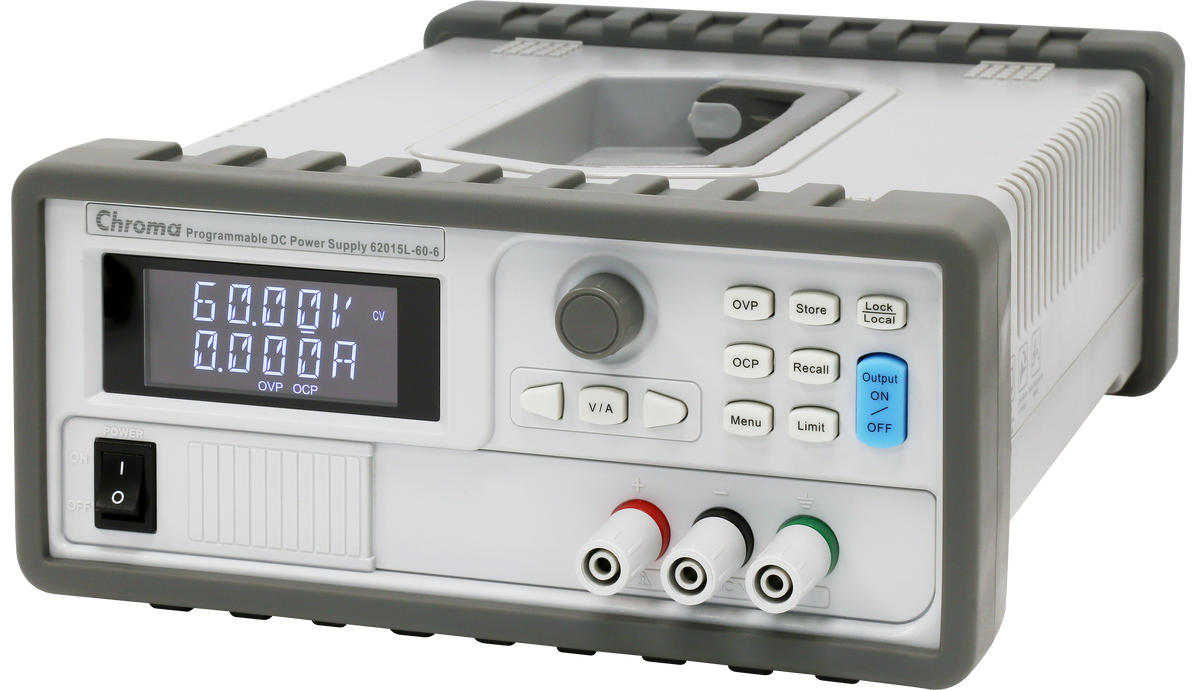

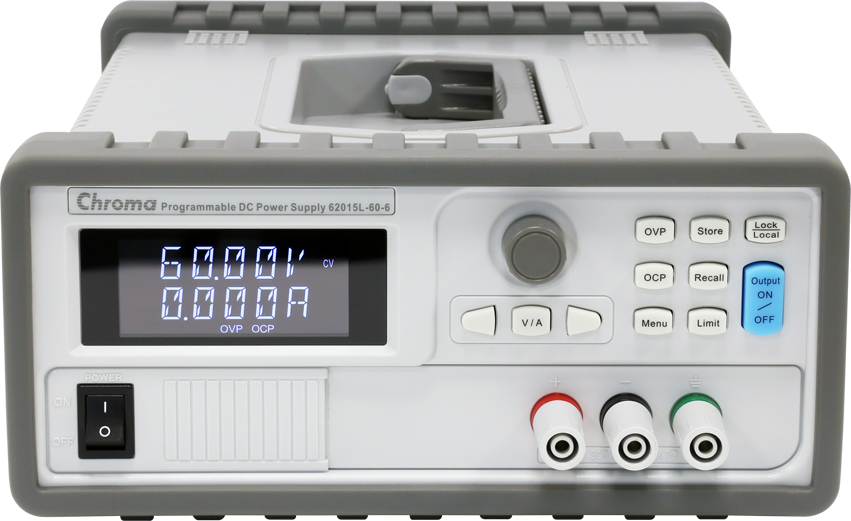

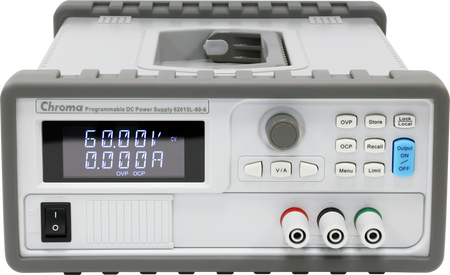

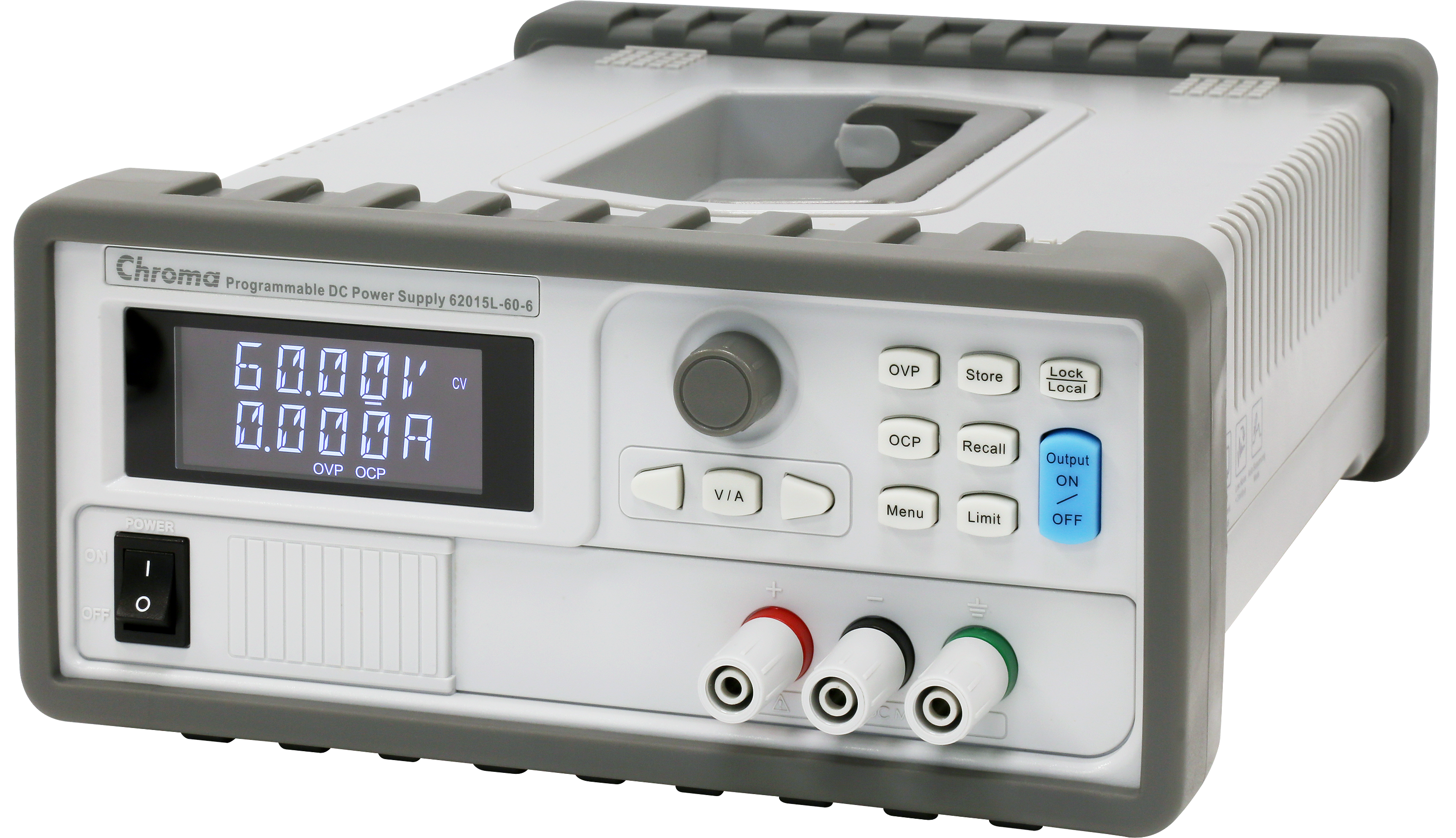

Auto-ranging DC Power Supply 60V/6A/150W

62015L-60-6 Auto-ranging DC Power Supply 60V/6A/150W

Model 62015L-60-6

We currently have 9 in stock ✔.

Model 62015L-60-6

Auto-ranging DC Power Supply 60V/6A/150W. Provides programmable DC power with low ripple, low noise linear performance and a fast transient response to meet the requirements of next generation power electronics like automotive power electronics MCU/ECU, wireless communications, and semiconductor IC drivers – all in a portable, lightweight, and cost effective package. GPIB and USB come standard and up to 7 units can be connected to achieve greater voltage and current output.

  • Voltage range: 0 ~ 60V
  • Current range: 0 ~ 6A
  • Power range: 0 ~ 150W
  • Wide range of voltage & current combinations in constant power
  • Low noise: < 3mVp-p
  • Fast transient response time: < 50us
  • High-speed programming
  • Precision V&I measurements
  • Standard GPIB/USB or USB/Ethernet
  • Remote sense
  • Master-slave parallel and serial control
  • 8 steps for auto sequencing programming
  • 16 storage locations for user-defined operating states
  • OVP, Current limit, Thermal protection
  • CE Certified
