Ground Bond Tester
Ground Bond Tester

Ground Bond Tester

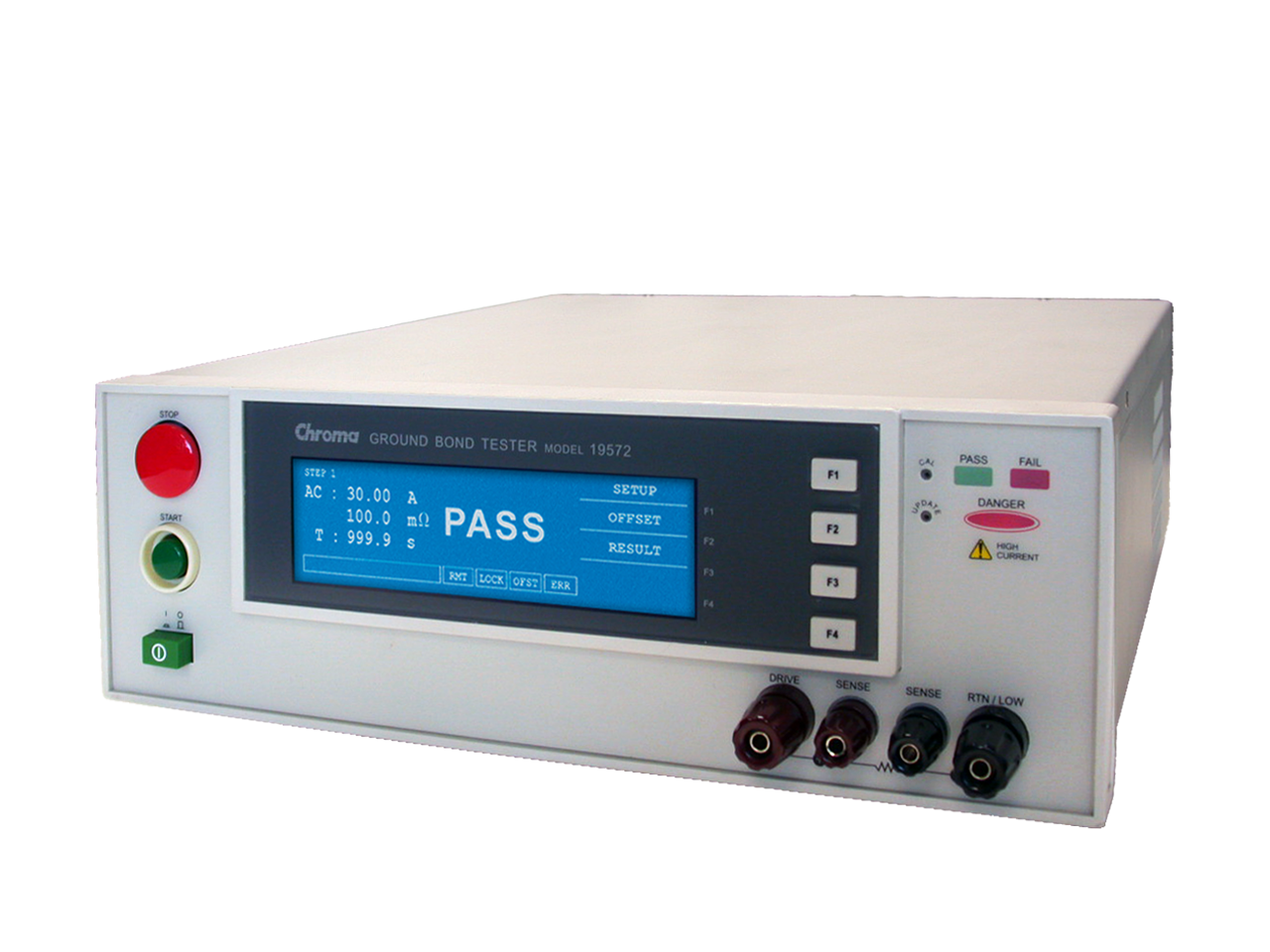

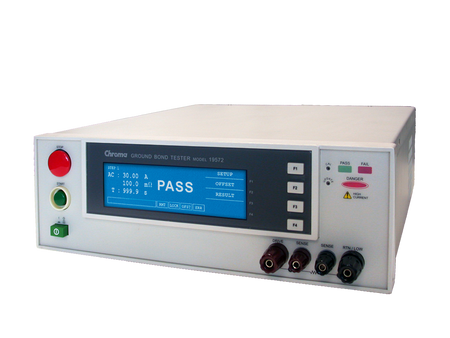

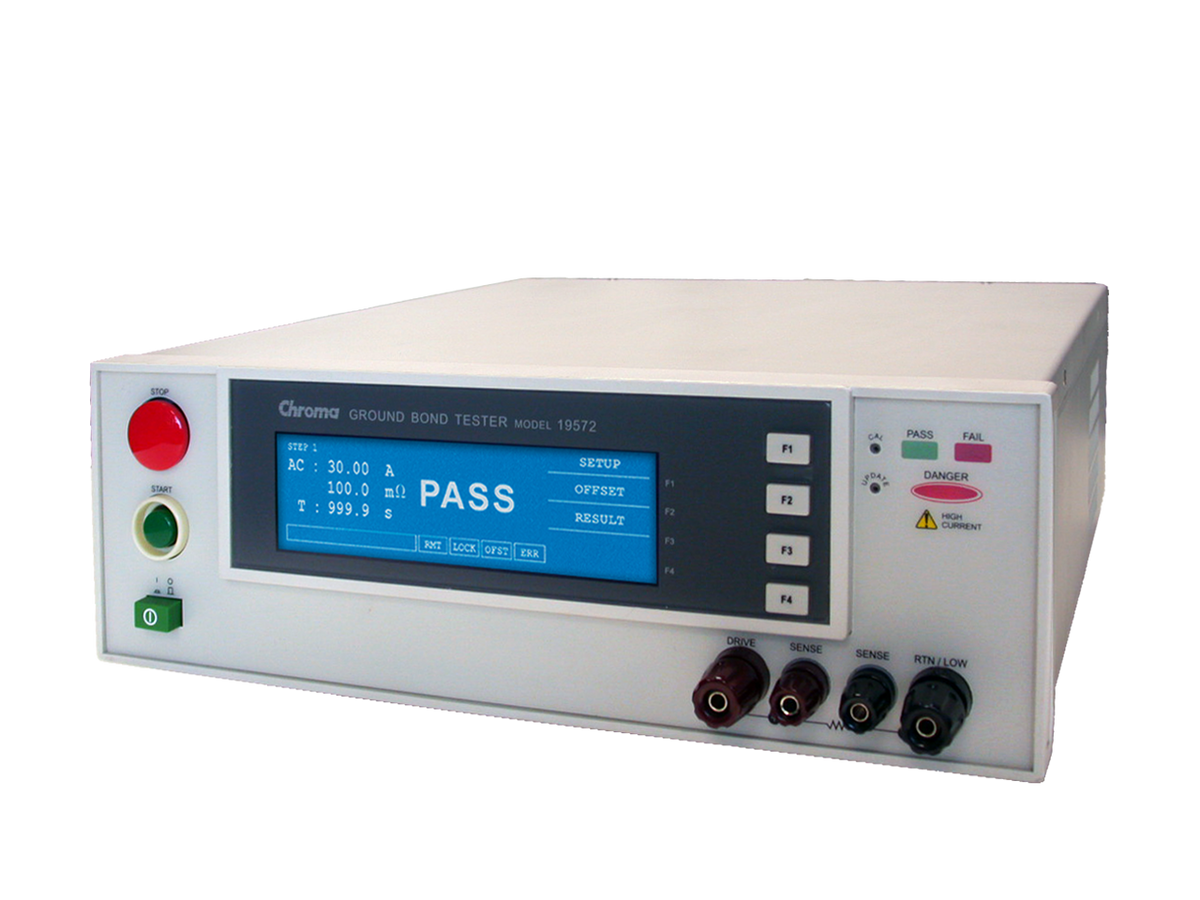

Model 19572

Okay to order. In stock soon.

Model 19572

The Guardian 19572 is an instrument dedicated to measuring grounding resistance within the range of 0.1~510mΩ. Its compact form factor and easy to operate feature set is well suited for testing in a production line. By supplying high reliability and stability test results with built-in resistance compensate function; it is an economical and useful grounding tester. Standard RS-232 interface. 2-Year factory warranty.

  • Wide resistance measurement range : 0.1 ~ 510 mΩ
  • High performance AC current output : 45 A
  • Compact size ground bond tester
  • Provide reliable and stable test results
  • Built-in resistance compensation function
  • Standard RS-232 interface
  • Optional GPIB Interface
  • Compatible with the model 19070 series Hipot Tester
  • 2-Year factory warranty
