Sentry Hipot Tester (AC/DC/IR)
Sentry Hipot Tester (AC/DC/IR)
Sentry Hipot Tester (AC/DC/IR)

Sentry Hipot Tester (AC/DC/IR)

Model 19073

We currently have 8 in stock ✔.

Model 19073

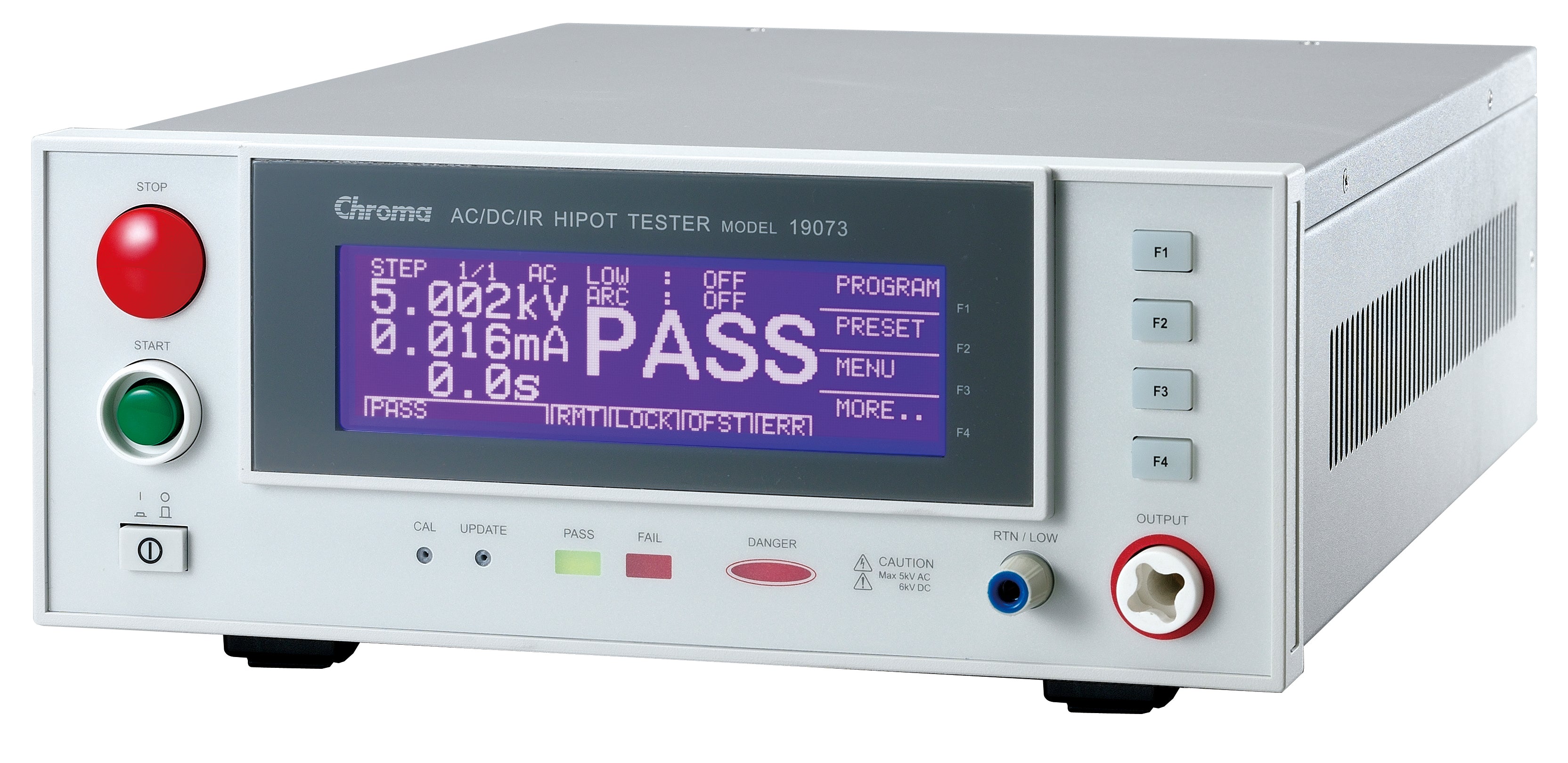

The Sentry 19073 combines both AC and DC Hipot with insulation resistance (IR) measurements into a single compact unit. The Sentry 19070 series testers are compact, lightweight and low cost. Its compact size is easy to move around the production floor and the large LCD display makes viewing measurement results easy. 2-Year factory warranty. This model replaced Quadtech's Sentry 30 Plus.

  • AC/DC/IR 3 in 1 hipot tester
  • AC 5kV and DC 6kV output
  • 1kV insulation resistance test
  • Insulation resistance measurement from 1MΩ to 50GΩ
  • Ground continuity check
  • Open Short Check(OSC) function
  • GFI shutdown the instrument when imbalance current > 0.5mA
  • Flashover (ARC) detection
  • Quick discharge of DUT in IR and DC test
  • Pause mode
  • Large LCD display (240 x 64 dots matrix)
  • UL and TUV approved (*see spec)
  • CE mark
  • Programmable ramp/fall and test time
  • Programmable high/low limit
  • Save/Recall program test function
  • Remote control and interface support
  • 2-Year factory warranty
