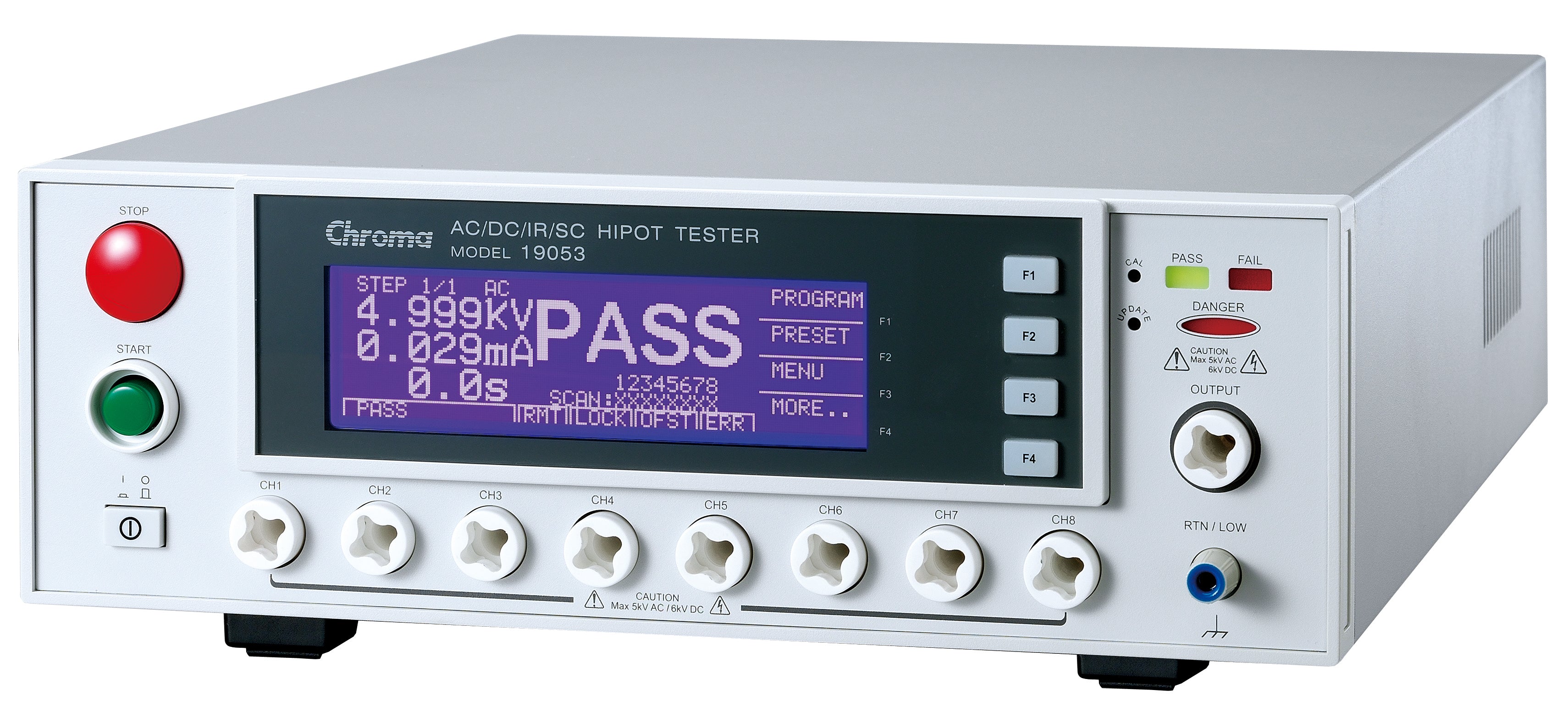

19053 Guardian 8CH Hipot Tester (AC/DC/IR/8CH SCAN)

In stock - 19 items available
SKU: 19053

Model 19053

The 19053 Guardian 8CH Hipot Tester (AC/DC/IR/8CH SCAN) offers AC and DC Hipot tests, IR measurements, and 8HV scan channel capabilities. Its front panel operation, digital display, and user-friendly controls make it easy to set test parameters and limits without requiring high-voltage activation. It has an output of AC 5kV and DC 6kV, and can perform 1kV insulation resistance tests with a measurement range of 1Ω~10Ω. Plus, it comes with a 2-year factory warranty and has replaced Quadtech's Guardian 1030S model.

  • AC/DC/IR 3 in 1 hipot tester
  • AC 5kV and DC 6kV output
  • 1kV insulation resistance test
  • Insulation resistance measurement: 1Ω~10Ω
  • Ground continuity check
  • Open Short Check(OSC) function
  • GFI shuts down the instrument when the imbalance current > 0.5mA
  • Flashover (ARC) detection
  • Quick discharge of DUT in IR and DC test
  • Pause mode
  • Large LCD
  • UL and TUV approved
  • CE mark
  • Programmable ramp/fall and test time
  • Programmable high/low limit
  • Save/Recall program test function
  • Remote control and interface support
  • 2-Year factory warranty
