61602 Programmable AC Power Source 1KVA

Model 61602

Chroma 61602 1KVA Programmable AC Power Source delivers pure, single-phase AC power at a very low cost. The 61602 supplies an output voltage of 0 to 300VAC and frequencies ranging from 15 to 1000Hz. It is suitable for commercial, avionics, and military applications from bench-top testing to mass production.

Comprehensive Measurements

This power source features a built-in 16-bit precision measurement circuit and firmware utilities that enable the measurement of RMS voltage, RMS current, true power, power factor, peak repetitive current, inrush current, current crest factor, apparent power (VA), and reactive power (VAR). These comprehensive measurements make the Chroma Programmable AC Power Source 61600 Series not only a power source but also a highly capable power meter.

Slew Rate of Voltage & Frequency

Using DSP technology for programming voltage waveforms, you can change the voltage or frequency in a single step, or set the slew rate to achieve a gradual increase or decrease in voltage and frequency. This can help test the power input range (for example, 90V-264V/47Hz-63Hz) of products easily.

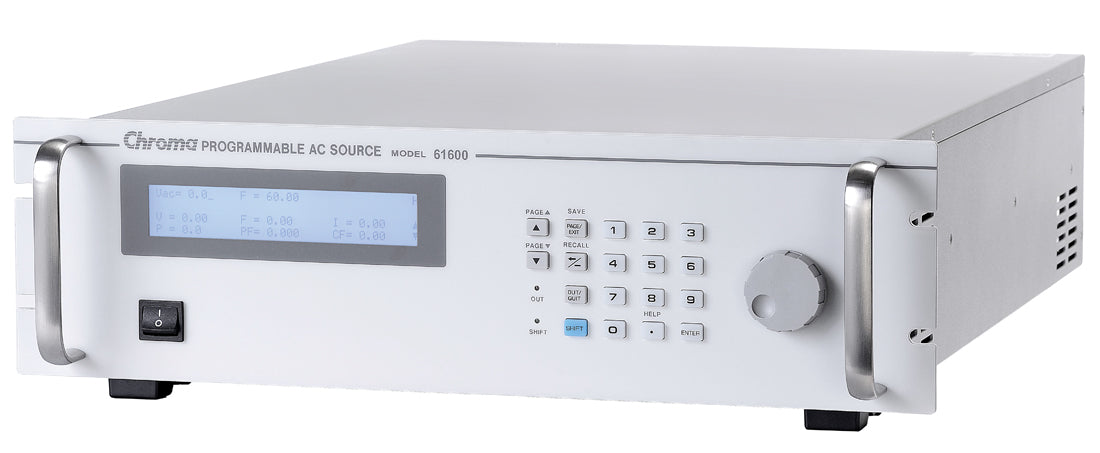

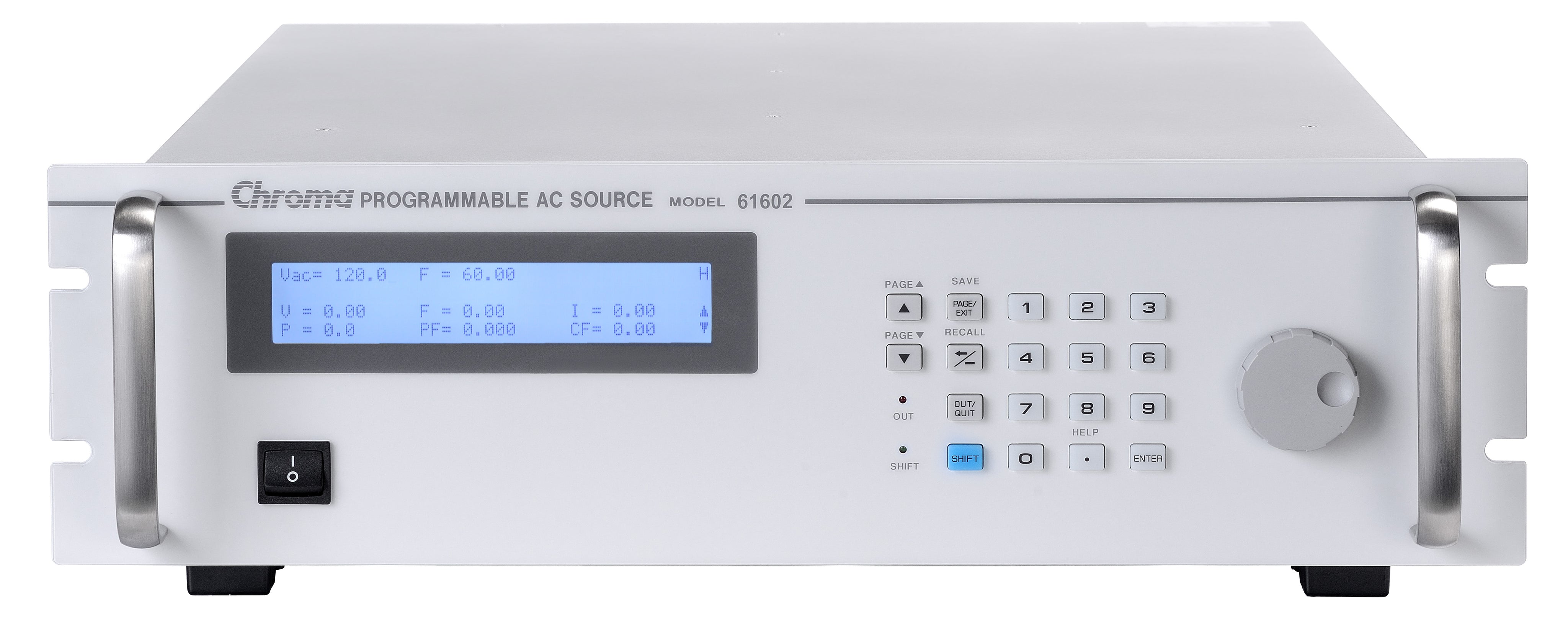

The 61600 series offers versatile front panel operations with an LCD display and rotary knob. Users can also remotely control the 61600 series AC source via GPIB, RS-232, or APG (Analog Programming) interface.
